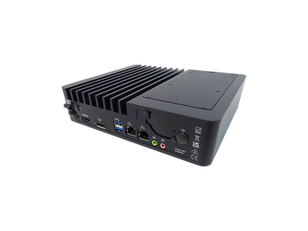

Fanless Mini Rugged Computer
Fanless Mini - Intel 14th Gen Mobile - IP51
FM-14M-51
Product Code:
Key Features
· 14th Gen Intel Core Ultra 5 135u or Intel Core Ultra 7 165u
· Intel Arc Graphics
· DDR5 4800/5600 MHz SO-DIMM slots upto 96GB
· Storage 1 Max: 4TB M2.NVME 2280
· Storage 2 Max: 8TB 2.5"" SATA SSD
Description
Our rugged fanless mini PC is equipped with the latest Intel Core Ultra processors, delivering performance in a compact and durable form factor. Perfect for industrial, IoT, and embedded applications, The fanless design ensures quieter, longer-lasting performance with no moving parts, whether you're working in extreme temperatures, dusty conditions, or space-constrained areas, this mini PC is designed to meet demanding challenges. Lower power consumption ensures cost-effective operations in both commercial and industrial settings.
IP Rating details
This product has been given an IP rating of 51, this means it will not be affected by dust and has limited protection against vertically falling drops of water or condensation, this make it ideal for "dirty" and hard to control environments
Maintenance
Given its IP51 rating maintenance requirements are practically zero, no dust will actively be drawn to the system, and any settling dust will not easily be able to penetrate the enclosure
Specifications
Technical
Form Factor
Fanless Mini Rugged Computer
Processor
Intel Core Ultra 5 135u - 12 Core / 14 Thread - up to 4.40 GHz -12MB Smart Cache
Intel Core Ultra 7 165u - 12 Core / 14 Thread - up to 4.9 GHz -12MB Smart Cache
Memory
Slots: 2x SO-DIMM Slots
MAX Capacity: 96GB
Type: DDR5 4800/5600 MHz SO-DIMM
ECC Support: No
Storage
Storage 1 Max: 4TB M2.NVME 2280
Storage 2 Max: 8TB 2.5" SATA SSD
Graphics Controller
Intel Arc Graphics (AI Soware Frameworks
Supported by GPU)
Graphics Interface
1 x DisplayPort 4096 x 2160 @ 60Hz
1 x HDMI 2.0 4096 x 2160 @ 60Hz
Network Interface
I219-V - 1 x RJ45 - 10/100/1000 Mbps
RTL8111H - 1 x RJ45 - 10/100/1000 Mbps
Network Options
RTL8821CE Wi-Fi 5 IEEE 802.11 b/g/n/ac - 2.4GHz/5GHz + Bluetooth 4.2
AX210 - Wi-Fi 6E IEEE 802.11 b/g/n/ac/ax - 2.4GHz/5GHz/6GHz + Bluetooth 5.3
4G/5G option
Network Features
Wake-On-Lan
PXE or UEFI PXE
Remote Management
remote switch machine intelligent
Hardware Monitoring
Watchdog On-Board
Encryption
fTPM 2.0 (Intel PTT)
Input Output
I/O Front
Power switch
LED Front
Power
I/O Rear
DC-In 12-19V, 2x RJ45 for LAN, 2x USB3.2, 1x
Display Port, 1x HDMI, 1 x 3.5mm Audio-Out, 1
x 3.5mm Mic-In, Sim Slot
LED Rear
Network Uplink/Activity
I/O Optional
Dual Antenna
Power
Power Input
2.5 x 5.5mm DC Jack
Input Voltage
12V-19V
Consumption
84 - 120w
Physical Specification
Dimensions
51 x 177 x 208 mm
Weight
2.4 KG
Case Type
Fanless
Case Material
Aluminum
Accessories
Power Supply, power cord
Operating and Storage
Operational Temp
-10°c to 60°c (14°F to 140°F)
Storage Temp
-20°c to 70°c (-4°F to 158°F)
Max relative humidity
5% to 95%
Cooling type
Passive Cooling
Other
Supported OS
Windows 10 - 64 bit
Windows 11 - 64 bit
Linux
Linux Ubuntu
Optional Accessories
Wireless Antenna, VESA KIT
Mounting Options
VESA KIT
Certifications
CE, UKCA, RoHS, FCC , WEEE
Manufacturer
Warranty
3 Years
