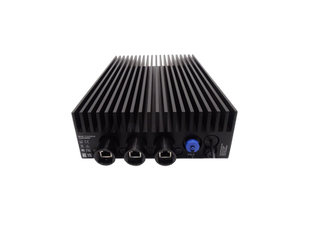

Fanless Rugged Server
Fanless Server - Intel Xeon Server Gen2 - IP66
FS-XE2400S-66
Product Code:
Key Features
· Intel Xeon E-2468
· Upto 128GB DDR5 memory
· Dual 10Gbe LAN, 1 Dedicated IPMI LAN port
Description
Our Waterproof Fanless Intel Xeon E Server is ideal for edge deployments in harsh environment's, equipped with Intel Xeon E-2468 processor and support for high capacity memory, making it perfect for applications that demand more computing power than a typical rugged device.
IP Rating details
This product has been given an IP rating of 66, this means dust cannot penetrate it, also, it is protected against high pressure jets of water.
This makes it suitable for an outdoor use and ideal for the most extreme environments
Maintenance
Given its IP66 rating maintenance requirements are practically zero, no dust will actively be drawn to the system, and any settling dust will not be able to penetrate the enclosure
Specifications
Technical
Form Factor
Fanless Rugged Server
Processor
Intel Xeon E-2468 - 8 Cores / 16 Threads - 5.20 GHz 24MB Cache
Memory
Slots: 4x DIMM Slots
MAX Capacity: 128GB
Type: DDR53200 UDIMM
ECC Support: Yes
Storage
Storage 1 Max: 2TB M2. NVME 2280
Storage 2 Max: 2TB 2x 2.5” SATA SSD
Graphics Controller
ASPEED AST2600
Graphics Interface
1x VGA - 1920 x 1200 @ 60Hz
Network Interface
2x 10GbE RJ45 (by Intel X557-AT2 ), 1 x RJ45 Dedicated IPMI LAN port
Network Options
N/A
Network Features
-
Remote Management
ASPEED AST2600
Hardware Monitoring
-
Encryption
-
Input Output

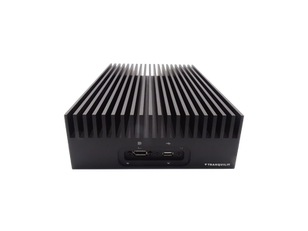

I/O Front
1x VGA, 1x USB 2.0
LED Front
I/O Rear

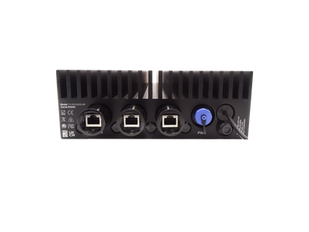

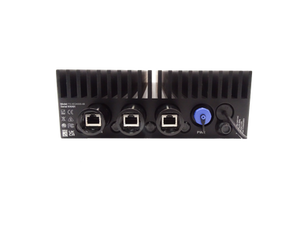

IP68 Power Socket, 2x RJ45 for 10GBe LAN, 1x RJ45 for IPMI, 1x Fuse Holder, Power switch
LED Rear
Power LED
I/O Optional
N/A
Power
Power Input
IP68 Buccaneer 4000 3-pin Power Socket
Input Voltage
110-230V
Consumption
15-95w
Physical Specification
Dimensions
75 x 221 x 336 mm
Weight
9.35 KG
Case Type
Fanless
Case Material
Aluminum
Accessories
Power Cord
Operating and Storage
Operational Temp
-10°c to 50°c (14°F to 122°F)
Storage Temp
-40°c to 70°c (-40°F to 158°F)
Max relative humidity
5% to 95%
Cooling type
Passive Cooling
Other
Supported OS
Windows Server 2022
Linux
VMware ESX 8.0 u1
Optional Accessories
N/A
Mounting Options
Desktop
Certifications
CE, UKCA, RoHS, FCC , WEEE
Manufacturer
Warranty
3 Years
