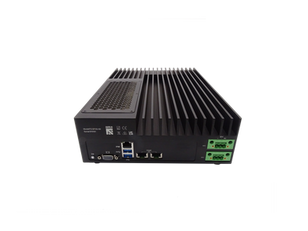

Fanless Rugged Server
Fanless Server - AMD Epyc 3000 Server - IP50
FS-EP3S-50
Product Code:
Key Features
· AMD EPYC Embedded 3151 or 3251 processor
· Upto 128GB DDR4-2666 memory
· Dual 10Gbe LAN
· Operating Range: -10C to 50C
Description
The Rugged Server is equipped with an AMD Epyc 3000 processor and boasts a maximum memory capacity of 128GB. It is an ideal solution for applications that require higher computing power than what smaller rugged devices can provide. Additionally, the server is equipped with an RJ45 port for dedicated management, which ensures minimal downtime and maximum reliability.
IP Rating details
This product has been given an IP rating of 50, this means it will not be affected by dust
Maintenance
Given its IP50 rating maintenance requirements are drastically reduced, no dust will actively be drawn to the system, and any settling dust will lay on the chassis filters, depending on the environment it is recommended these filters are cleared every so often
Specifications
Technical
Form Factor
Fanless Rugged Server
Processor
AMD Epyc 3000 3151 - 4 Cores / 8 Threads - 2.7 GHz / 2.9 GHz Turbo
AMD Epyc 3000 3251 - 8 Cores / 16 Threads - 2.5 GHz / 3.1 GHz Turbo
Memory
Slots: 2 DIMM slots
MAX Capacity: 128GB
Type: DDR4-2666 1.2V ECC UDIMM, RDIMM, LRDIMM
Storage
Storage 1 Max: 4TB M2. NVME 2280
Storage 2 Max: 8TB 2x 2.5” hot-swappable SATA3 SSD bay drives in Raid 0,1
Graphics Controller
ASPEED AST2500
Graphics Interface
1x VGA - 1920 x 1200 @ 60Hz
Network Interface
Intel® X550-AT2 - 2 x RJ45 - 1000/10000 Mbps
Network Options
N/A
Network Features
Wake-On-LAN, Energy Efficient Ethernet 802.3az
PXE
Dual LAN with Teaming Function
Remote Management
ASPEED AST2500 - IPMI 2.0 - RTL8211E - 1 x RJ45 for dedicated management
ikvm and vMedia support
Hardware Monitoring
Watchdog On-Board
NMI
Encryption
TPM Header 1 x (13-pin)
Input Output
I/O Front
Power Switch, 1x USB 2.0
LED Front
Power, Power Supply Status, Storage Activity
I/O Rear
Dual Power in, 2x RJ45 for 10GBe LAN, 1x RJ45 for IPMI, 2x USB 3.2, 1x VGA, UID Switch/LED
LED Rear
Network Uplink/Activity
I/O Optional
N/A
Power
Power Input
2 x 5.08mm pitch "Phoenix" connector
Input Voltage
12V
Consumption
15-80w
Physical Specification
Dimensions
75 x 221 x 336 mm
Weight
9.35 KG
Case Type
Fanless
Case Material
Aluminum
Accessories
Power supply and power cord
Operating and Storage
Operational Temp
-10°c to 50°c (14°F to 122°F)
Storage Temp
-40°c to 70°c (-40°F to 158°F)
Max relative humidity
5% to 95%
Cooling type
Passive Cooling
Other
Supported OS
Windows Server 2019 - 64bit
RedHat Enterprise Linux Server 7.4 - 64 bit
CentOS 7.4 - 4 bit
Ubuntu 18.04.2 - 64 bit
Optional Accessories
2nd Power supply
Mounting Options
Half Rack, Desktop
Certifications
CE, UKCA, RoHS, FCC , WEEE
Manufacturer
Warranty
3 Years
