Fanless Rugged Server
Fanless Server - AMD Epyc 4004 Server - IP50
FS-EP4S-50
Product Code:
Key Features
· AMD EPYC 4464P processor
· Upto 192GB DDR5-5600 memory
· Dual LAN
· Operating Range: -10C to 50C
Description
The Rugged Server is equipped with an AMD Epyc 4004 series processor and boasts a maximum memory capacity of 192GB. It is an ideal solution for applications that require higher computing power than what a smaller rugged device can provide. The server is equipped with Dual LAN anda RJ45 port for dedicated management, which ensures minimal downtime and maximum
reliability.
IP Rating details
This product has been given an IP rating of 50, this means it will not be affected by dust
Maintenance
Given its IP50 rating maintenance requirements are drastically reduced, no dust will actively be drawn to the system, and any settling dust will lay on the chassis filters, depending on the environment it is recommended these filters are cleared every so often
Specifications
Technical
Form Factor
Fanless Rugged Server
Processor
AMD Epyc 4464P - 12 Cores / 24 Threads - 3.7 GHz / 5.4 GHz
Memory
Slots: 4 DIMM slots
Max Capacity: 192GB
Type: DDR5 5600 1.1V
ECC Support: Yes
Storage
Storage 1 Max: 7.98TB 2 x M.2 (PCIe5.0 x4) 2280
Graphics Controller
ASPEED AST2600
Graphics Interface
1 x HDMI
Network Interface
2x 1GbE RJ45 (by Intel i210)
2x 10GbE RJ45 (by Intel X710)
Network Options
N/A
Network Features
Wake-On-LAN
PXE
Dual LAN with Teaming Function
Remote Management
1 RTL8211F x RJ45 for dedicated management GLAN
Hardware Monitoring
Watchdog On-Board
Encryption
TPM Header 1 x (13-pin)
Input Output
I/O Front
Power Switch
LED Front
Power

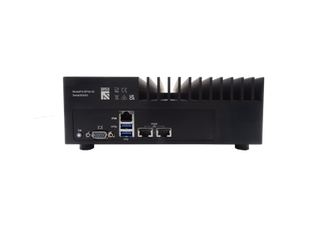

I/O Rear
1x C13, 2x RJ45 for Dual LAN, 1x RJ45 for IPMI,
2x USB 3.2, 1x HDMI
LED Rear
Network Uplink/Activity
I/O Optional
N/A
Power
Power Input
C13 input
Input Voltage
110-230V
Consumption
84 - 120w
Physical Specification
Dimensions
75 x 221 x 336 mm
Weight
9.35 KG
Case Type
Fanless
Case Material
Aluminum
Accessories
Power Cord
Operating and Storage
Operational Temp
-10°c to 50°c (14°F to 122°F)
Storage Temp
-40°c to 70°c (-40°F to 158°F)
Max relative humidity
5% to 95%
Cooling type
Passive Cooling
Other
Supported OS
Windows® Server2022 (64bit)
RedHat Enterprise Linux Server 9.3 (64bit)/9.4 (64bit)
SUSE SLES 15.5 (64bit)
UBuntu 20.04.6 (64bit)/22.04.4 (64bit)
VMWare® ESXi 7.0 U3g /8.0U2b
Optional Accessories
Rack mounting option
Mounting Options
Rack mount
Certifications
CE, UKCA, RoHS, FCC , WEEE
Manufacturer
Warranty
3 Years
